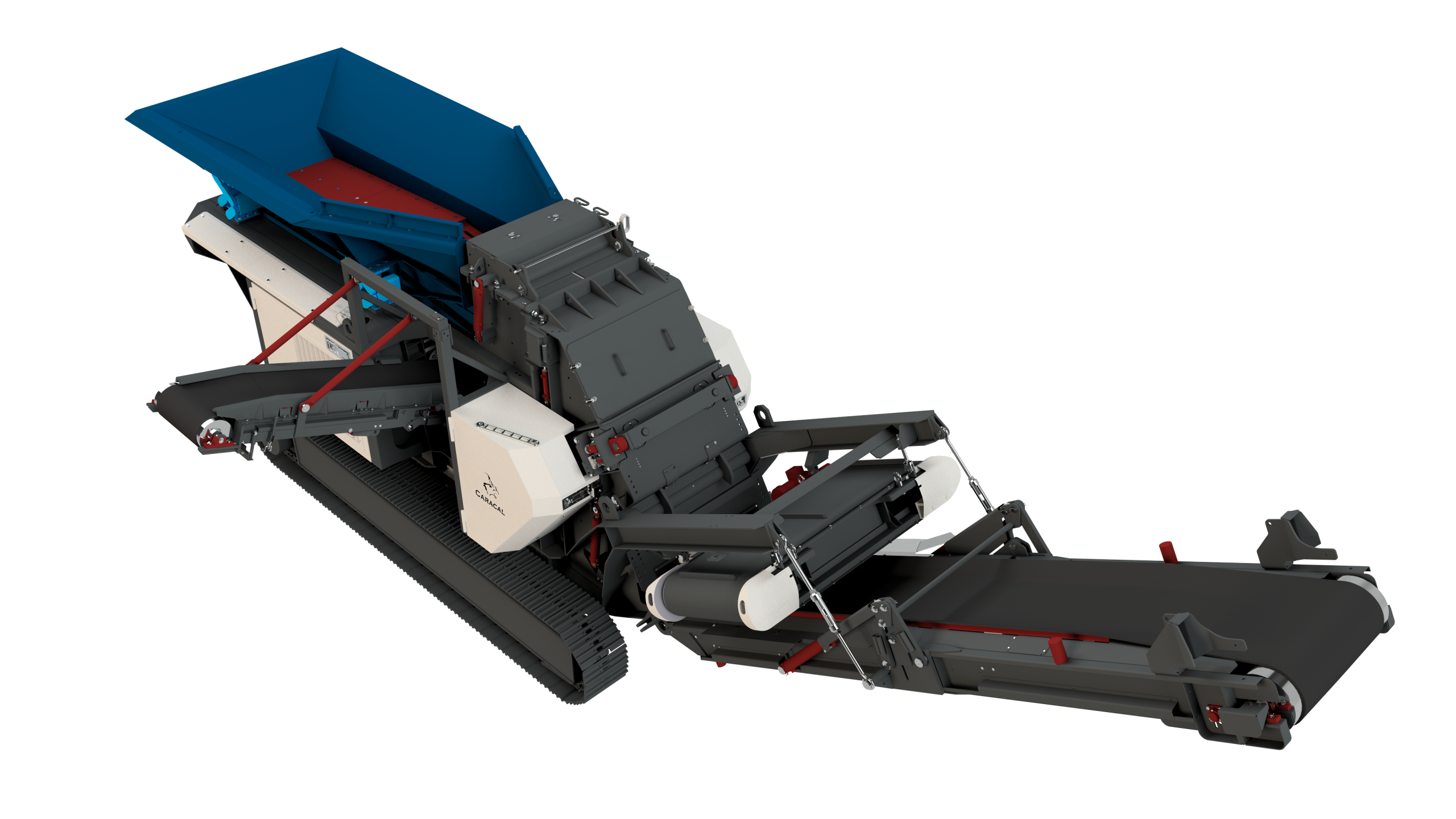

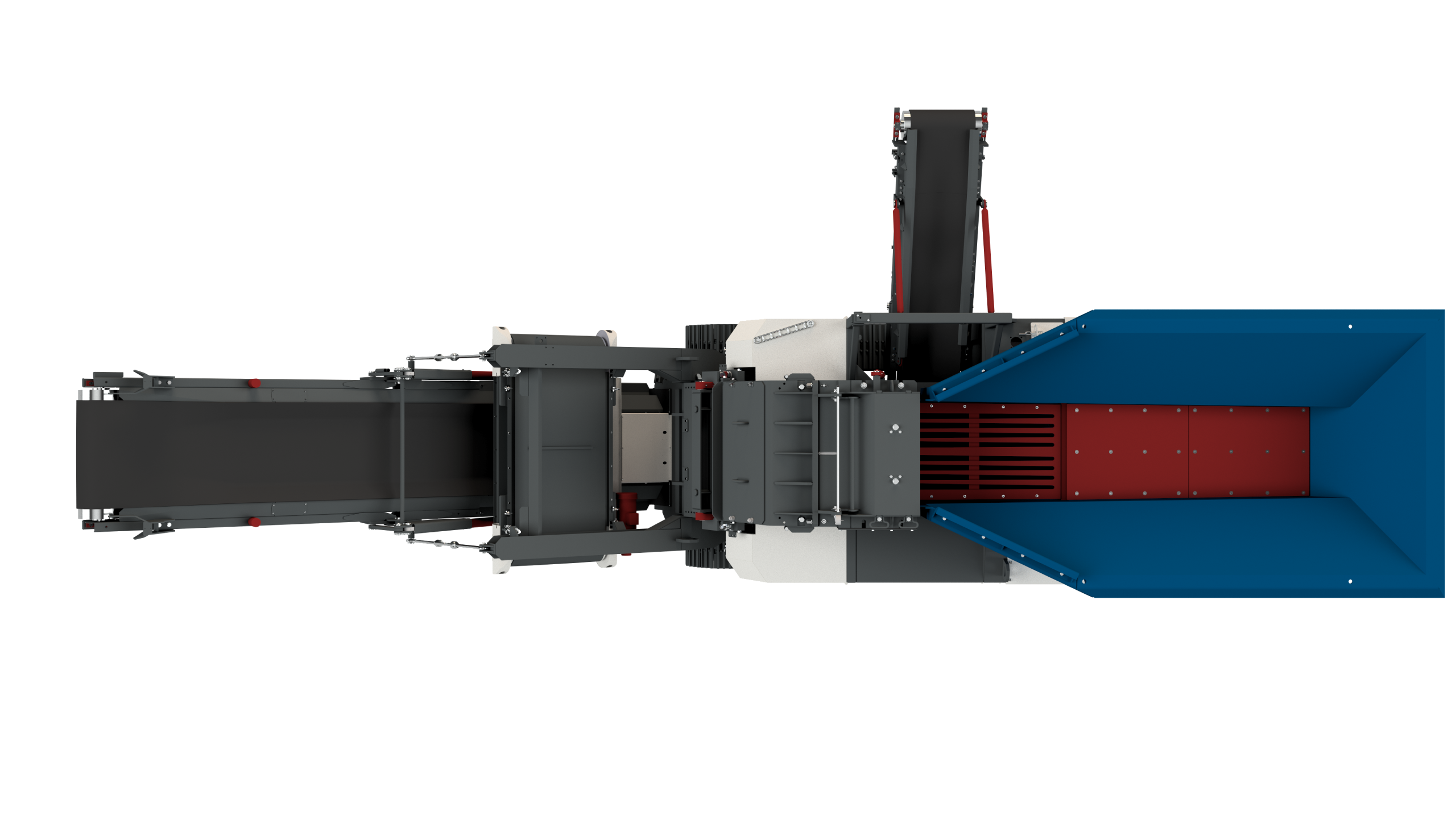

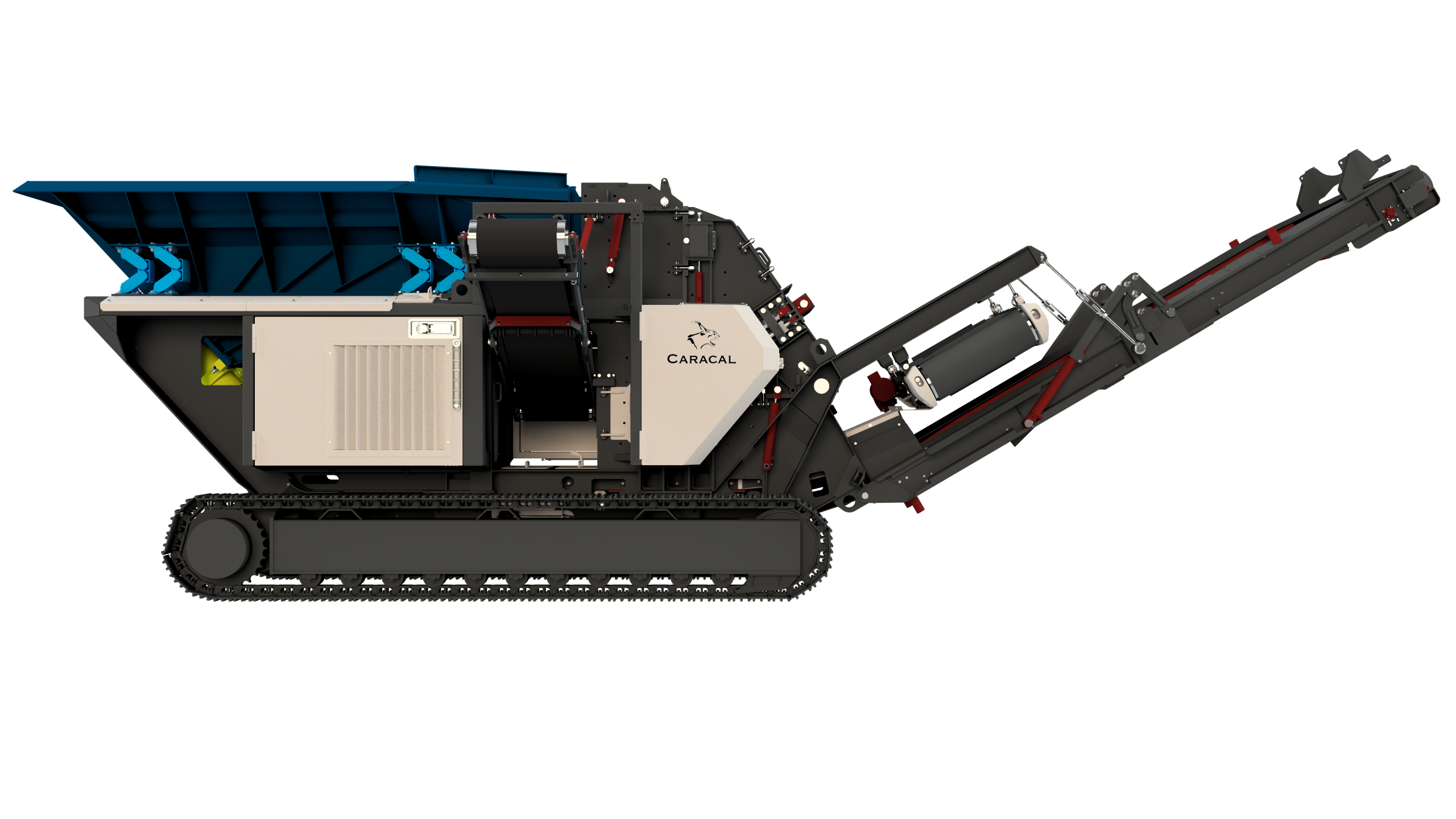

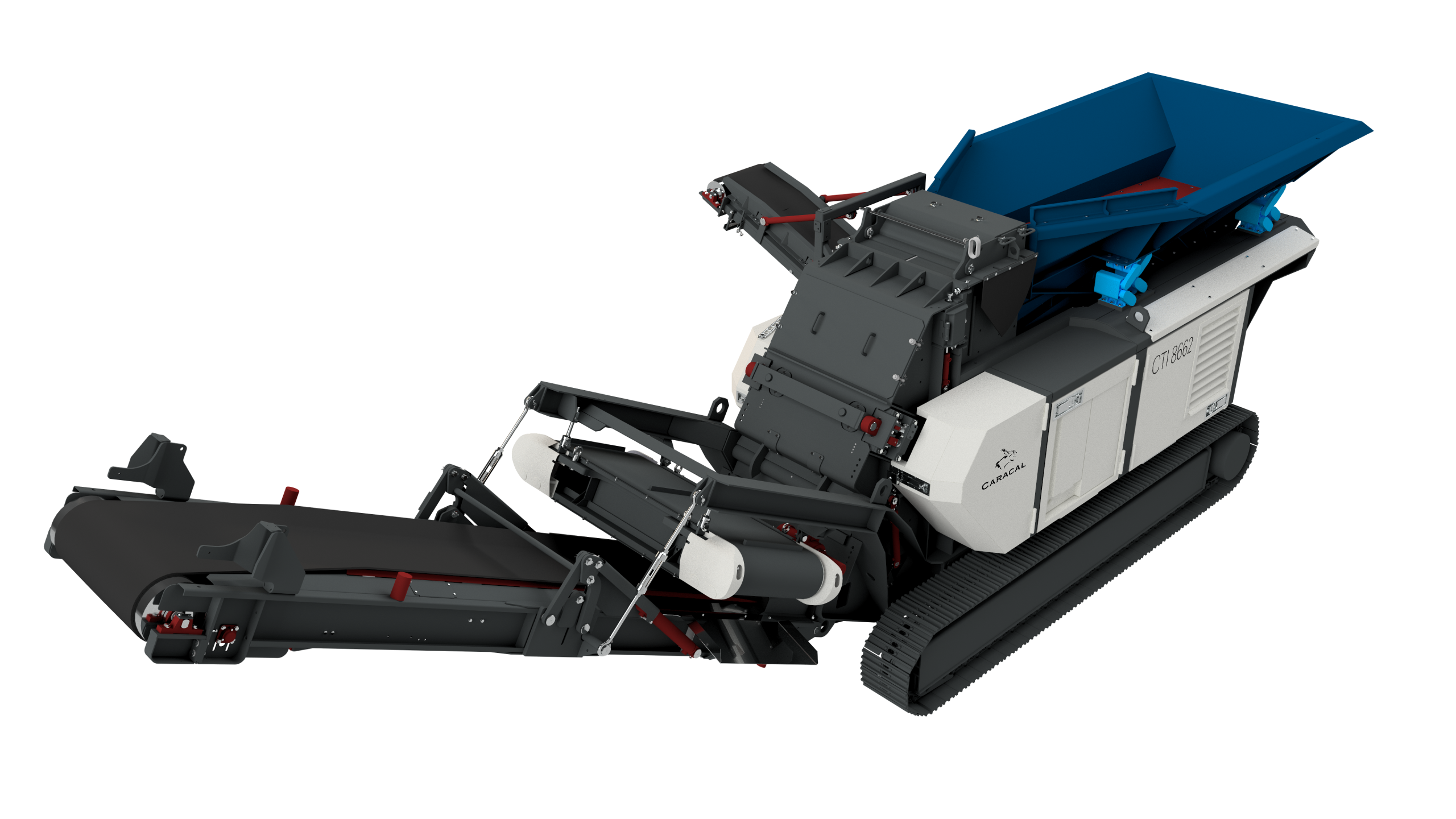

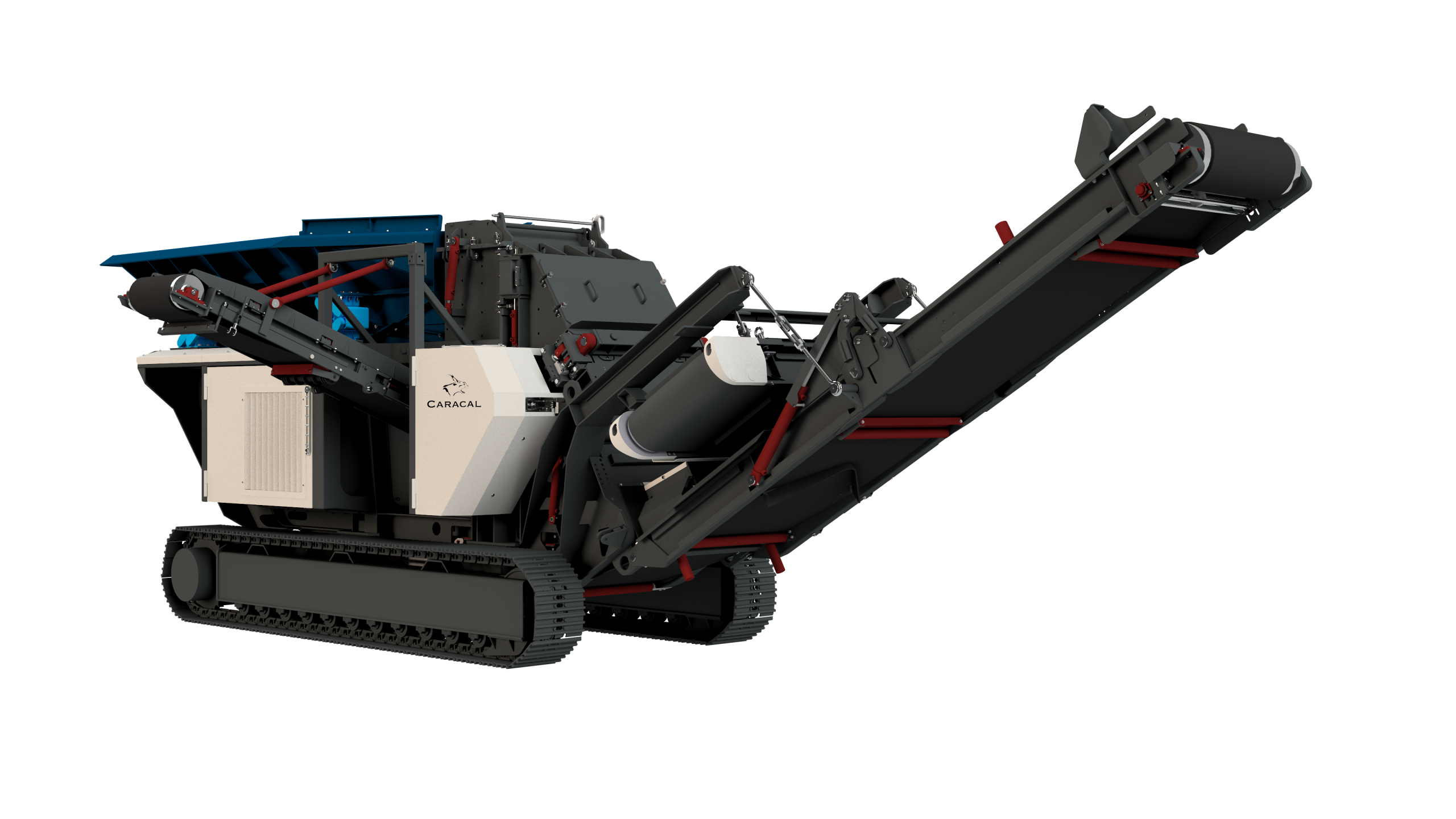

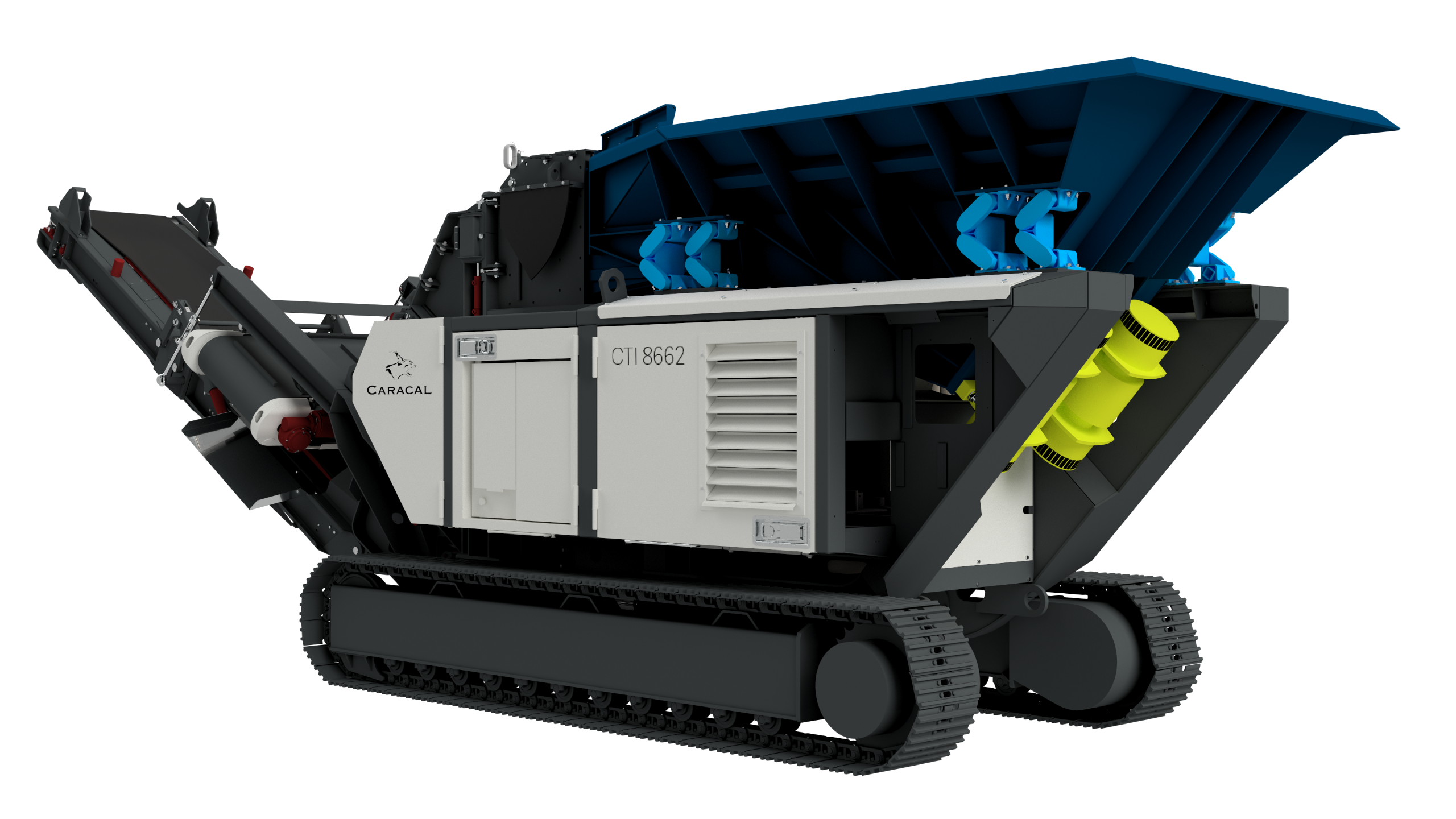

Mobile Impact Crusher CTI 8662
The CTI 8662 is a fully mobile impact crusher unit designed for high-efficiency crushing operations. Equipped with a primary grizzly feeder, an impact crusher, and a product conveyor, this compact system is ready for operation within just 15 minutes on site. An optional magnetic separator on the product conveyor enables the removal of ferrous materials, while the feeder automatically adjusts its speed according to the crusher’s load, ensuring consistently high efficiency. Ideal for both crushing-screening and recycling applications, the unit is particularly effective in producing base and sub-base materials.
The crusher upper body and apron settings are hydraulically controlled, offering faster and safer adjustments during operation. With remote control functionality, the entire unit can be operated easily by a single person. Additionally, an optional closed-circuit screen and conveyor setup allows for the production of sized final products. Thanks to its rapid setup, excellent crushing performance, and the ability to deliver high cubical product when desired, the CTI 8662 stands out as a powerful and cost-effective solution for mobile crushing needs.
Mobile Impact Crusher CTI 8662 Technical Specifications
| KEY FEATURES | |
| Maximum Capacity | : up to 160 tph |
| Feed Size | : Edge length maximum 650 mm |
| FEEDING UNIT | |
| Hopper Volume | : 2,6 m³ |
| Hopper Dimensions | : 2.160 x 4.200 mm |
| Feeder Dimensions | : 800 x 3.400 mm |
| Drive | : 2 x 4,3 kW 1.000 rpm vibromotors |
| Pre-screening Area | : 1.050 x 800 mm |
| IMPACT CRUSHER | |
| Rotor Dimensions | : Ø860 x 620 mm |
| Blowbars | : 16-18% Mn casting |
| PRODUCT CONVEYOR | |
| Dimensions | : 800 x 7.250 mm |
| Discharge Heigt | : 2.950 mm |
| Drive | : Hydromotor |
| BY-PASS CONVEYOR | |
| Dimensions | : 500 x 3.000 mm |
| Discharge Heigt | : 2.360 mm |
| Drive | : Hydromotor |
| POWER UNIT | |
| Power | : 170 kW Tier 3 or Tier 4 Final or Stage V diesel engine |
| Generator | : 40 kVA 400 V |
| External Output | : 230 V - 400 V 15 kVA |
| OPTIONS | |
| Dust Supression | : Inside crusher and outlet |
| Control | : Remote control |
| Lubrication | : Central system |
| Magnetic Separator | : 650 mm width, hydromotor drive |
| TRANSPORT DIMENSIONS | |
| Width | : 2.435 mm |
| Length | : 9.275 mm |
| Height | : 2.990 mm |
| Transport Weight | : 23.600 kg |

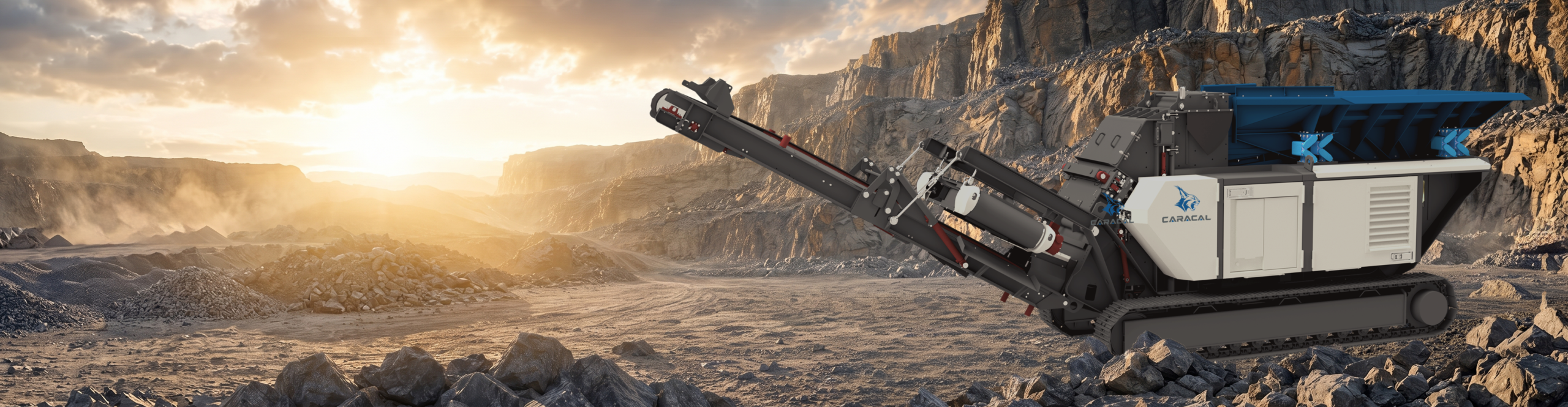

Introduction: What is a Mobile Impact Crusher and Why is it Important?
In today’s construction, mining, and recycling industries, efficiency and flexibility are critical for project success. This is where mobile impact crushers come in. Unlike traditional stationary crushing plants, mobile impact crushers are compact, integrated crushing machines that can move on tracked platforms.
So, what exactly is a mobile impact crusher and how does it work? Simply put, these machines crush material (such as concrete, asphalt, limestone, etc.) fed into their hopper, reducing it to a desired size using a high-speed rotor and impact plates. Their mobility allows them to perform crushing directly at the material source, significantly reducing transportation costs and time.
Why Choose a Mobile Impact Crusher? Advantages and Benefits
Mobile impact crushers offer a range of significant advantages that enable you to complete your projects faster, more efficiently, and at a lower cost:
1. Superior Flexibility and Portability
- On-site Crushing Capability: Easily move the material within or between construction sites, reducing truck traffic and fuel consumption.
- Quick Setup and Dismantling: Set up and get ready for use much faster compared to stationary plants.
- Adaptability to Project Changes: Quickly adapt to projects at different sites or with varying crushing needs.
2. Operational Efficiency and Cost-Effectiveness
- Reduced Transportation Costs: Performing crushing directly at the source significantly lowers material transportation expenses.
- Time Savings: Shorter project durations due to less logistical planning and faster setup.
- Energy Efficiency: Modern mobile crushers ensure optimal fuel consumption or electricity use, reducing operating costs.
3. High-Quality Product Output
- Cubic Aggregate Production: Impact crushers produce highly cubic, stress-free aggregate, which is ideal for concrete and asphalt production. This improves the quality of the final product.
- Wide Range of Products: Obtain various final product sizes through different adjustment options.
4. Environmentally Friendly Solutions
- Reduced Carbon Footprint: On-site crushing reduces transportation-related carbon emissions, offering an environmentally conscious solution.
- Waste Recycling: Contributes to sustainability by transforming construction and demolition waste (concrete, asphalt, brick, etc.) into valuable secondary raw materials.
Mobile Impact Crusher Applications: Which Projects Are They Ideal For?
Mobile impact crusher machines play a critical role in a wide range of projects. Here are their primary application areas:
- Construction and Demolition Projects: On-site crushing and recycling of building demolition waste (concrete, brick).
- Road Construction and Maintenance: Recycling asphalt and stabilized road materials, and producing aggregate for new road construction.
- Quarries and Mining: Primary, secondary, or tertiary crushing of materials like limestone, basalt, and dolomite.
- Aggregate Production: Ideal for producing aggregates of various sizes and qualities.
- Infrastructure Projects: Material production and recycling in large-scale infrastructure projects such as bridges, railways, and dams.
Mobile Impact Crusher Selection Guide: What to Consider?
Choosing the right mobile impact crusher model is vital for your project’s success and return on investment. Consider the following factors when making your selection:
- 1. Capacity (Tons/Hour): Choose a capacity suitable for your project’s hourly crushing needs. Lower capacity machines are for smaller projects, while higher capacity ones are preferred for large mining operations.
- 2. Feed Size and Material Type: Determine the maximum feed material size and the type of material to be crushed (hardness, abrasiveness). This affects the size of the machine’s jaws and rotor.
- 3. Product Size and Shape: What final product sizes and cubicity ratio are you aiming for? Impact crushers excel at producing cubic products.
- 4. Mobility Type: Do you need a wheeled or tracked model? Tracked models move better on challenging terrain, while wheeled models are more suitable for road transport.
- 5. Additional Features: Features like a pre-screen, magnetic separator (for metal removal), dust suppression systems, and remote control can optimize your workflow.
- 6. Ease of Maintenance and Spare Part Availability: Research how easy it is to maintain the machine and how quickly and affordably wear parts (blow bars, liners) can be accessed.
- 7. Brand and After-Sales Support: Choosing a reputable manufacturer is important for product quality and comprehensive after-sales services (warranty, technical support, training).
