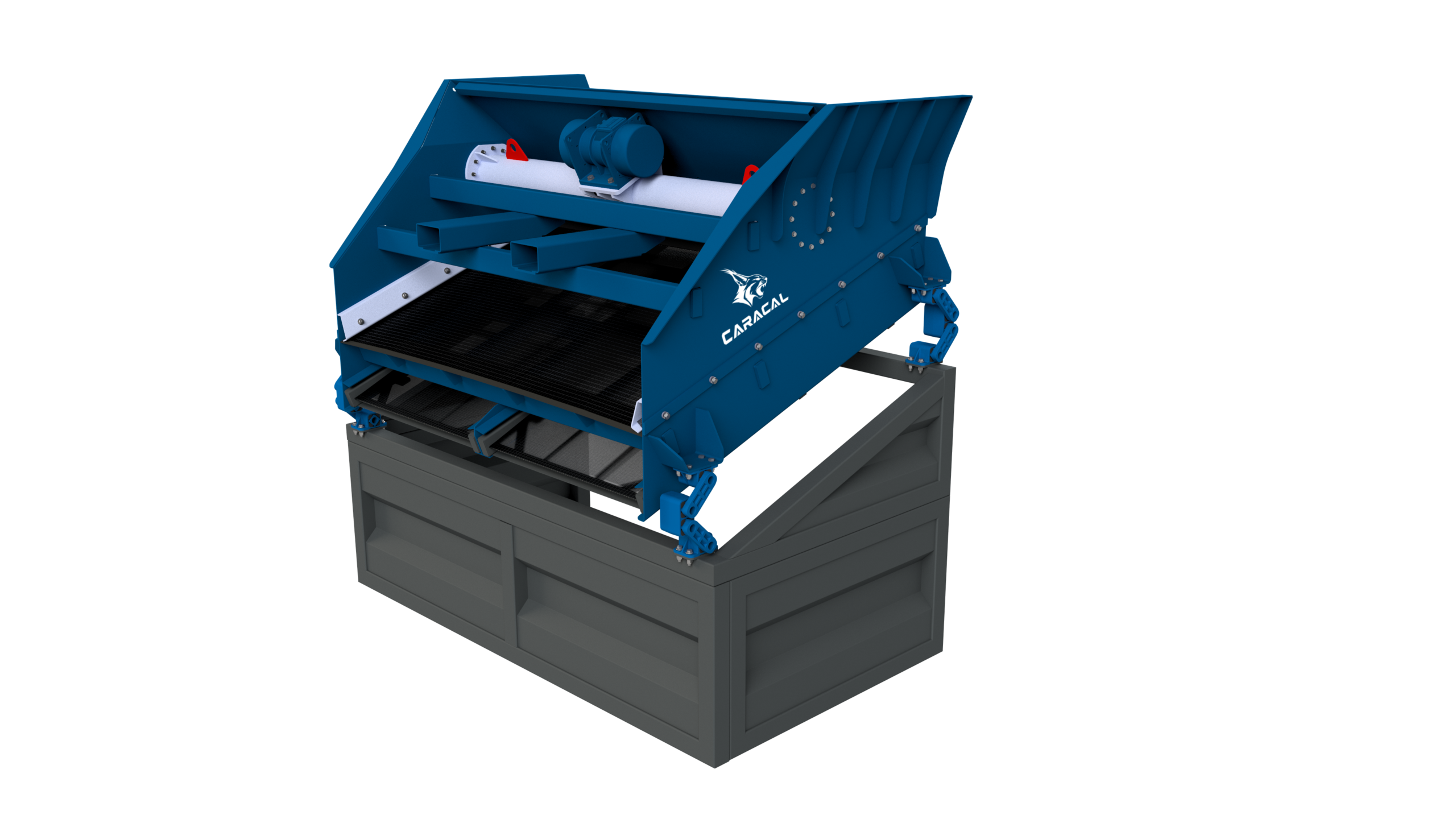

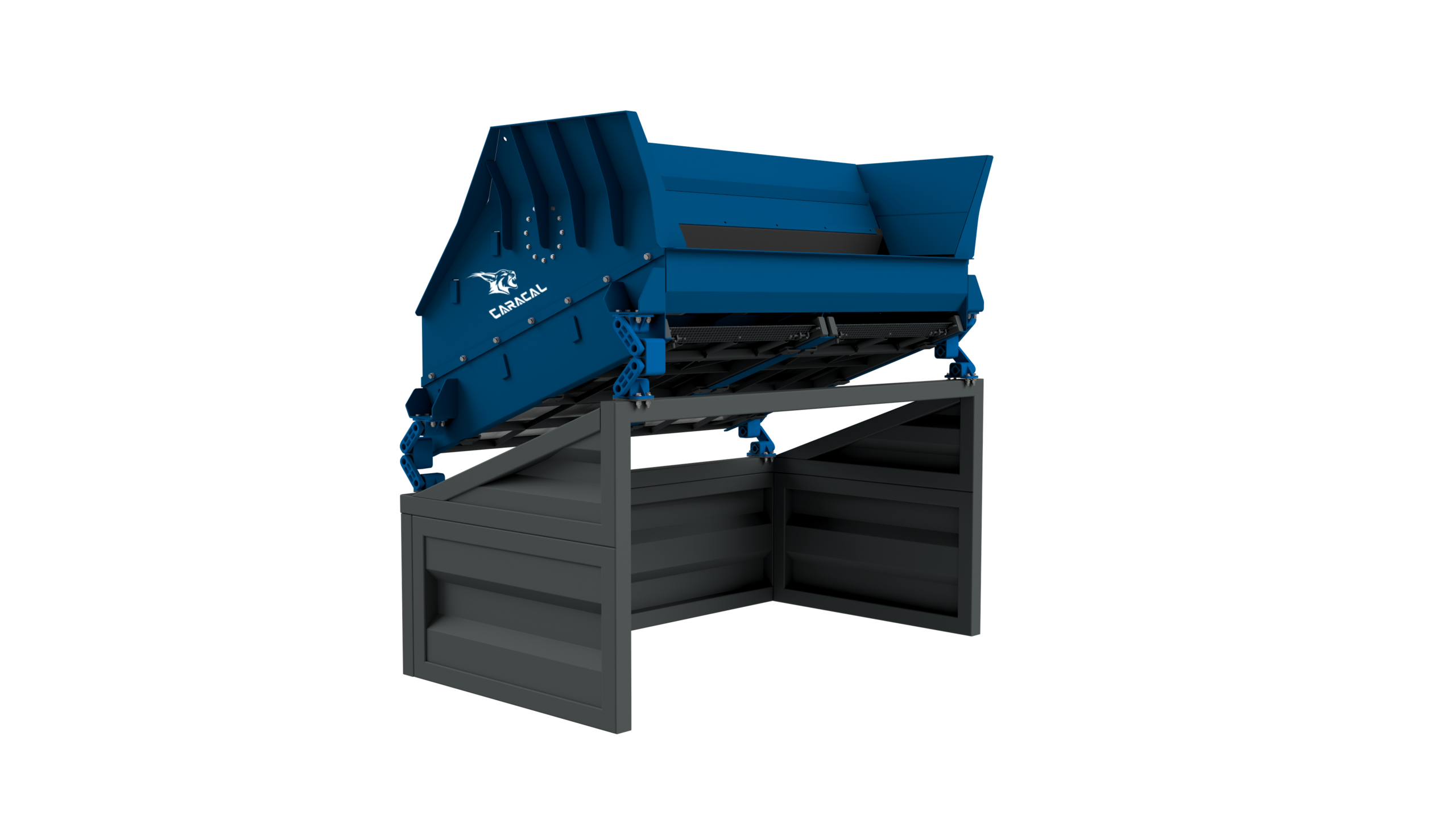

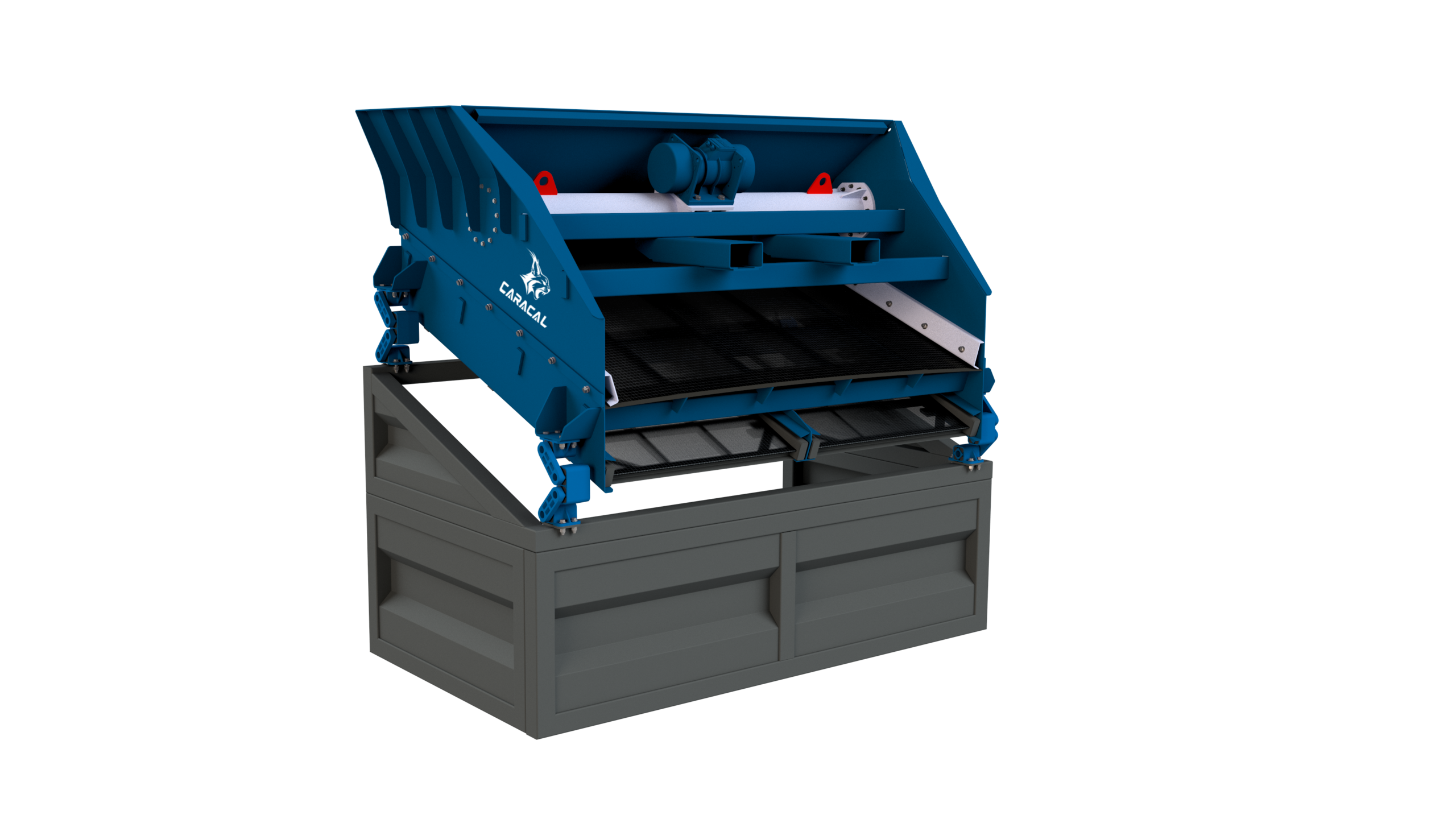

Mini Screener CMS Series
The CMS Series Mini Screeners, available in five different sizes and capacities (CMS 1900, 2100, 2300, 2500, and 2700), are designed for use with mini excavators, loaders, and backhoe loaders. These compact units are ideal for separating a wide range of materials such as rubble, compost, topsoil, sand, and various recyclables. Depending on the model, they can produce up to 100 tons/hour with two or three product fractions.
Thanks to their lightweight design, they can be easily moved with a forklift or mini excavator, making them a practical solution not only for landscaping and recycling companies but also for quarries and rental businesses. Key advantages include low maintenance requirements, easy screen media replacement, and a durable structure. With their compact size, ease of transport, competitive price, and high-quality components, CMS Mini Screeners are the go-to choice for contractors and rental companies seeking a fast and cost-effective screening solution.
Mini Screener CMS Series Technical Specifications
| Model | CMS 1900 | CMS 2100 | CMS 2300 | CMS 2500 | CMS 2700 |
| Capacity Range | 17 - 50 t/h | 25 - 65 t/h | 30 - 75 t/h | 35 - 90 t/h | 40 - 100 t/h |
| Actual Screening Area | 2 x 2,1 m² | 2 x 2,35 m² | 2 x 2,75 m² | 2 x 3,65 m² | 2 x 4,25 m² |
| Maximum Feeding Width | 1.900 mm | 2.100 mm | 2.300 mm | 2.500 mm | 2.700 mm |
| Power | 0,50 kW, 380 V, 50 Hz | 0,95 kW, 380 V, 50 Hz | 1,54 kW, 380 V, 50 Hz | 1,7 kW, 380 V, 50 Hz | 2 kW, 380 V, 50 Hz |
| Width | 2.150 mm | 2.350 mm | 2.550 mm | 2.750 mm | 2.920 mm |
| Length | 1.280 mm | 1.380 mm | 1.480 mm | 1.650 mm | 1.910 mm |
| Height | 2.100 mm | 2.200 mm | 2.350 mm | 2.650 mm | 2.790 mm |
| Weight | 750 kg | 1.120 kg | 1.475 kg | 2.050 kg | 2.270 kg |
Mini Screener Compact Design, Flexible Use – A Practical Screening Solution for Every Jobsite
The Mini Screener is designed for efficient separation of materials such as rubble, soil, sand, compost, and recyclables. With multiple size and deck configurations, it easily integrates with mini excavators, loaders, or backhoe loaders thanks to its compact and portable structure.
Wide Range of Applications
From landscaping to recycling, from demolition waste to agricultural or infrastructure projects — the Mini Screener offers versatility across a broad spectrum of industries. With models capable of handling up to 100 tons per hour, it meets the needs of both small businesses and heavy-duty operations such as quarries and rental fleets.
Mini Screener Key Advantages
Multiple Capacity Options: Models available for 2 or 3 fraction output to suit different operational requirements.
Compact & Portable: Easily transportable with a forklift or mini excavator; ideal for confined spaces.
Low Maintenance: Durable structure with quick-change screen meshes reduces downtime and maintenance costs.
User-Friendly Operation: Simple setup and operation — no extensive training required.
High Quality at Competitive Cost: Premium components ensure durability without inflating your budget.
Reliable Performance, Real Results
The Mini Screener is built to deliver measurable efficiency on-site — not just promises. Its wide capacity range, ease of transport, and low operating costs provide speed and flexibility to your workflow.
